DJI RS 5 Gimbal Stabilizer

From: AED 1,928.85 Incl VAT

Highlights

  • Enhanced Intelligent Tracking and Composition
  • Briefcase Handle With Gimbal & Camera Control
  • 1-Hour Full Charge, 15% Extended Runtim
  • Fine-Tuning Knobs and Teflon™ Enhanced Balancing
  • New Z-Axis Indicator
  • 2nd-Gen Automated Axis Locks
DJI RS 5 Gimbal Stabilizer
SKU: DJI-RS500 /D
Categories: , , ,
Share:
Information
Specification
Whats in the Box?
FAQ

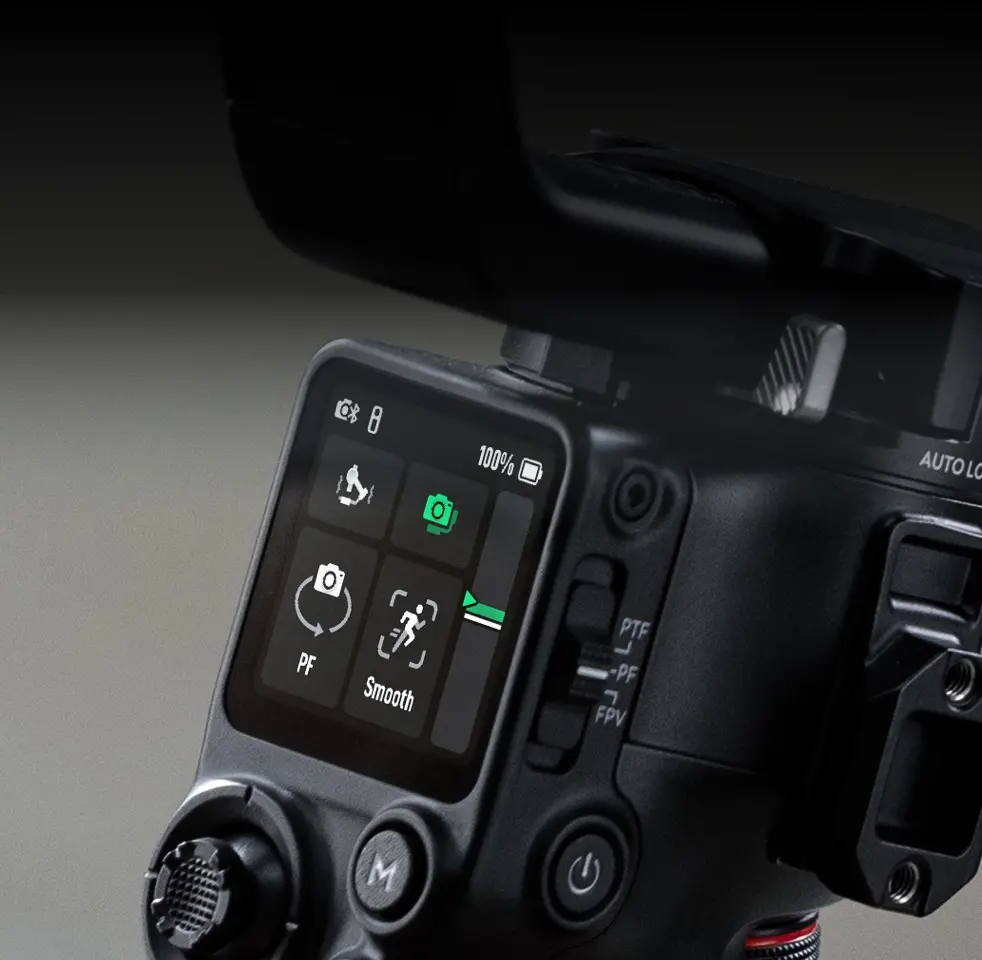

RS Enhanced Intelligent Tracking Module

The module lets you frame and track any subject—a person, vehicle, or pet—from the gimbal’s touchscreen, keeping the subject precisely positioned.

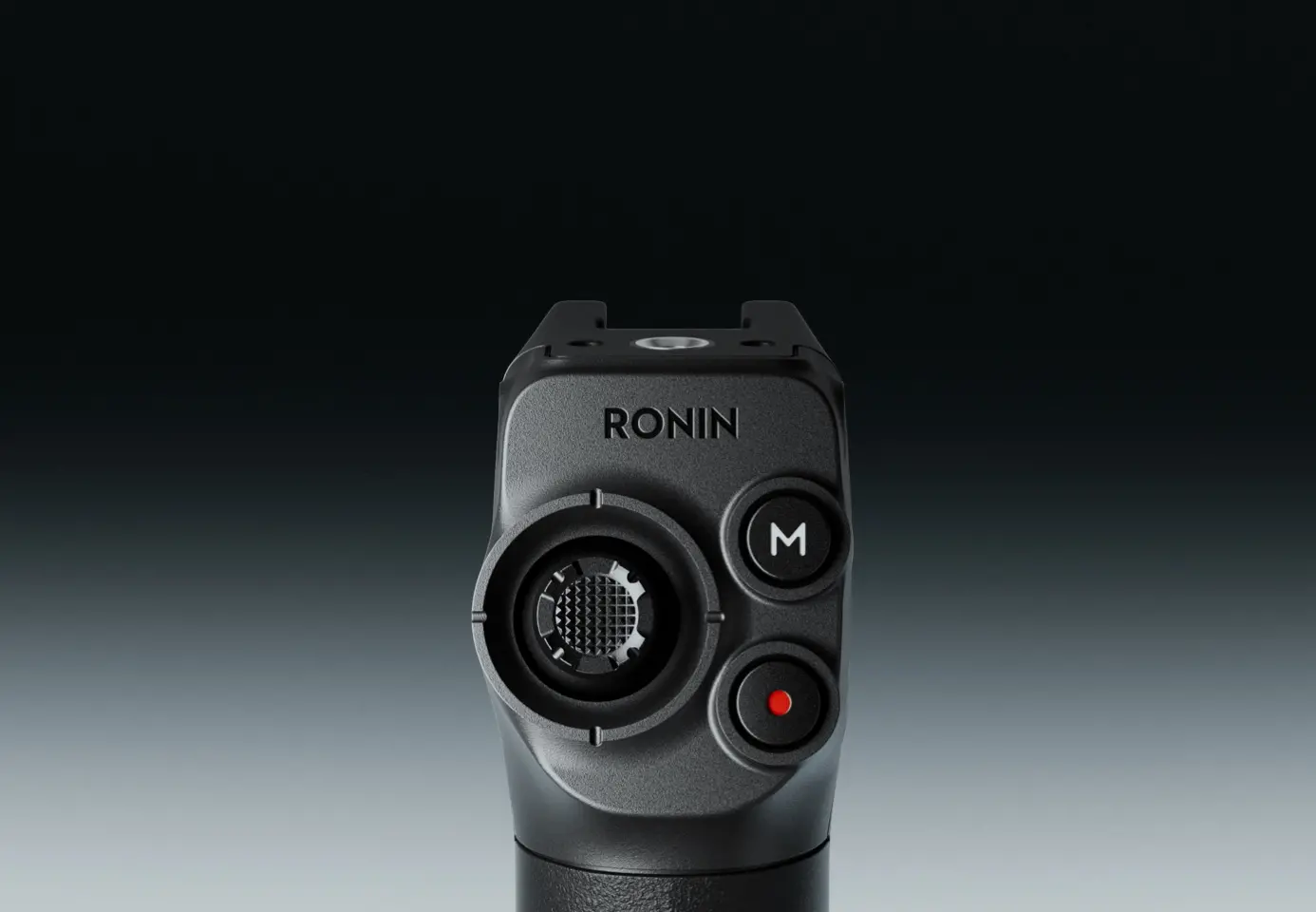

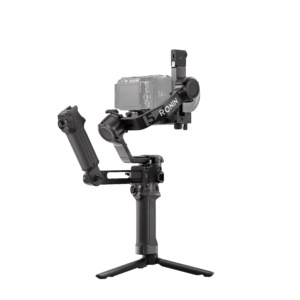

New Electronic Briefcase Handle

The new Electronic Briefcase Handle offers intuitive, effortless single‑handed operation, featuring a joystick and buttons that control the gimbal and camera for more creative angles.

New Z-Axis Indicator

The new Z‑Axis Indicator gives you instant feedback to fine‑tune your footsteps for steadier, more professional shots.

Fine-Tuning Knobs and Teflon™ Enhanced Balancing

Fine-tuning knobs on each axis arm and Teflon™ interlayers deliver precise, smooth balancing, even with heavier professional setups.

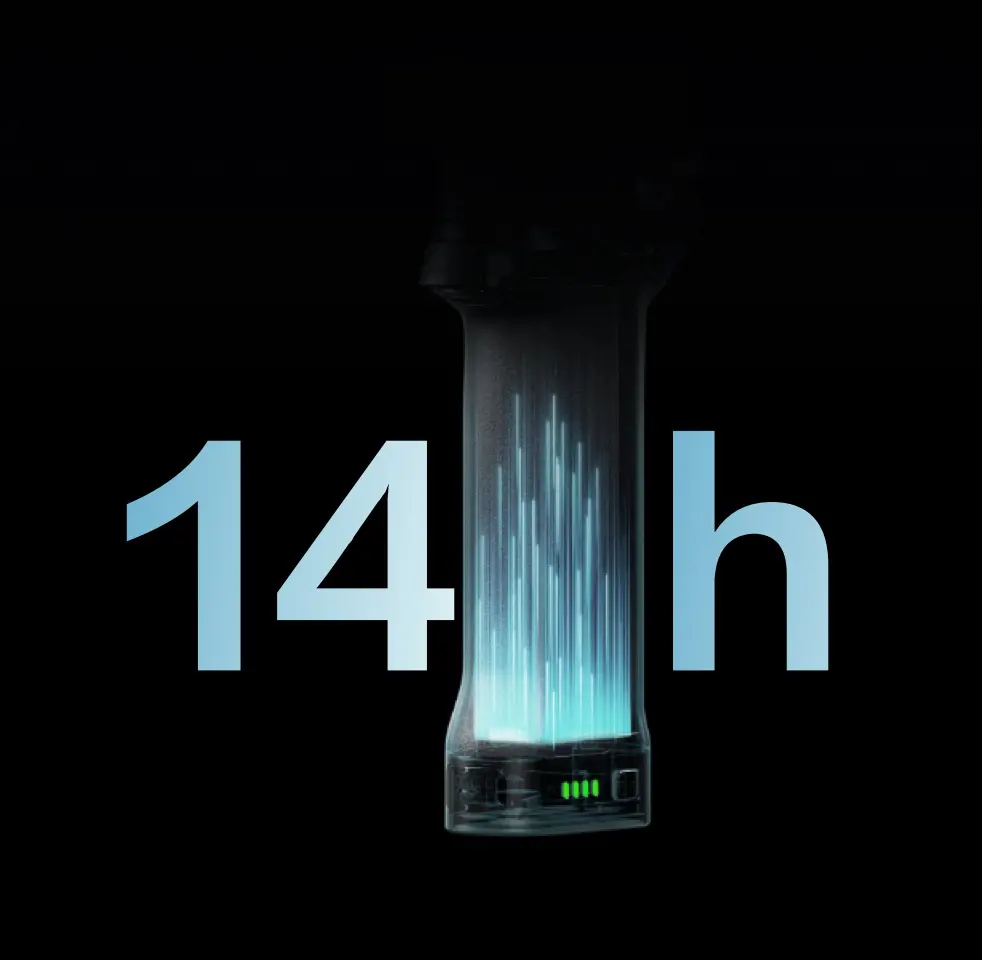

Extended Runtime, 1-Hour Full Charge

Fully charge DJI RS 5 in just one hour—a 60% increase in speed. The standard battery delivers approximately 14 hours of standby time, a 15% improvement.

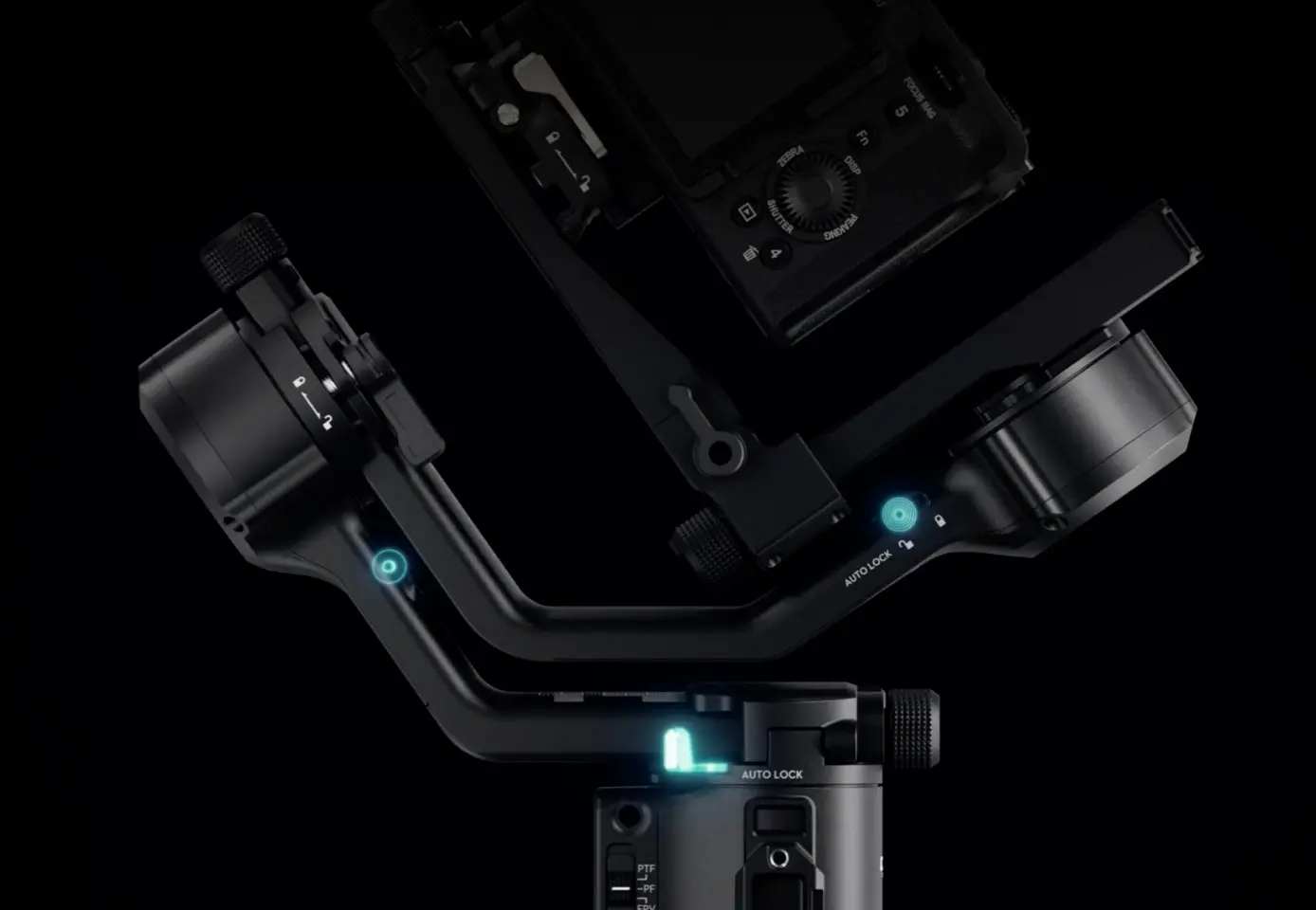

2nd-Gen Automated Axis Locks

The 2nd-Gen Automated Axis Locks automatically lock the gimbal upon power-off or sleep for easier transitions and storage. They unlock just as quickly upon power-on, getting you ready to film in an instant for those critical moments.

Gimbal & Mechanics

Tested Payload 3.0 kg (6.6 lbs)
Rotation Speed Pan/Tilt/Roll: up to 360°/s
Mechanical Range Pan: 360° continuous
Roll: –95° to +240°
Tilt: –112° to +214°
Vertical Shooting Supported
Axis Locks 2nd-Gen Automated Axis Locks

Dimensions & Weight

Gimbal Weight Approx. 1193 g (2.63 lbs) incl. upper & lower quick-release plates
Grip Weight Approx. 274 g (0.60 lbs)
Quick-Open Tripod Weight Approx. 149 g (0.33 lbs)
Upper/Lower Quick-Release Plates Approx. 96 g (0.21 lbs) incl. screws

Battery

Battery Model BHX715-2150-15.48
Type LiPo 4S
Capacity / Energy 2150 mAh / 33.29 Wh
Voltage Range 11.2 V to 17.8 V
Charging Input USB-C: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3A
Max Standby Time Approx. 14 hours* (with BG33 Battery Grip)
Full Charge Time Approx. 1 hour (65W PD charger)
Operating Temperature –20° to 45° C (–4° to 113° F)

Connectivity & Ports

Wireless Bluetooth, 2.4 GHz control
Mounting / Ports RSA communication / NATO / 1/4″-20 mounting / USB-C

DJI RS 5 — Frequently Asked Questions

What is the Enhanced Intelligent Tracking Module?

The RS Enhanced Intelligent Tracking Module allows you to frame and track subjects directly from the RS 5’s touchscreen. It supports tracking of people, vehicles, pets, and other objects.
The touchscreen lets you select subjects and adjust tracking with intuitive controls.

How many subjects can the RS 5 follow with ActiveTrack?

DJI RS 5 can track up to one subject at a time when using ActiveTrack on the gimbal’s touchscreen.

How do I change ActiveTrack composition?

You can adjust ActiveTrack composition in three ways:
1. Use the touchscreen icon in ActiveTrack settings to select “Keep Current Framing” or “Center Tracking Subject”.
2. Control framing with the grip joystick.
3. Use “Double L” hand gestures to set and lock composition.

How do I activate DJI RS 5?

Turn on the gimbal, enable Bluetooth on your phone, and connect via the Ronin app. Select DJI RS 5 and follow the on-screen steps. The default password is “12345678”.

How do I update firmware?

Open the Ronin app, connect RS 5, and follow the firmware update prompt. Do not turn off the gimbal or exit the app during updating.

Is DJI RS 5 waterproof or dustproof?

No. DJI RS 5 is not waterproof or dustproof. Keep it away from moisture and dust to avoid damage.

What material is the DJI RS 5 made of?

The RS 5 gimbal body is primarily made of aluminum alloy.

How long does the battery last?

With the included BG33 Battery Grip, RS 5 can stand by for approx. 14 hours under balanced, stationary conditions. Charging from 0–100 % takes about 1 hour using a 65W PD charger.

Does DJI RS 5 work while charging?

Yes. DJI RS 5 can be used while connected to a charger during operation.

Which follow modes are supported with tracking?

Tracking and composition functions are supported in PF (Pan Follow) and PTF (Pan Tilt Follow) modes, but not in FPV mode.
